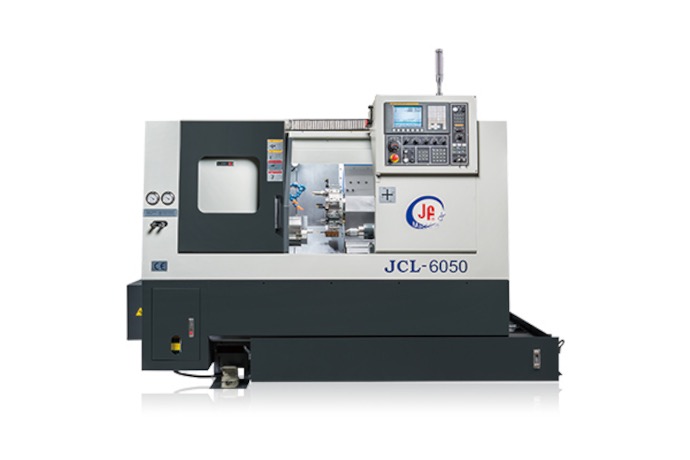

Feature

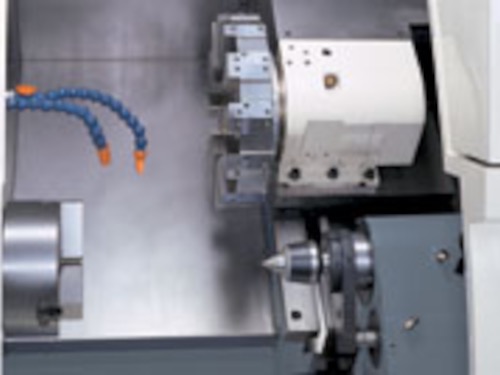

3-JAW CHUCK, TURRET AND TAILSTOCK
-
The 10-position heavy turret features large diameter curvic coupling and high pressure of 4396 kgf. Tool change time between adjacent tools is 0.3 seconds.

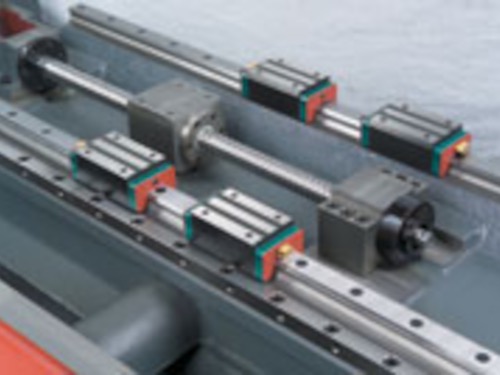

LINEAR GUIDE WAY
- The Z-axis is equipped with extra rigid linear ways. Each linear way has two blocks, producing extremely firm support.
HIGH PRECISION BALL SCREW
-
The Z-axis ball screw is directly driven by servomotor. Extra large diameter of ball screw greatly upgrades feeding stability on Z-axis.

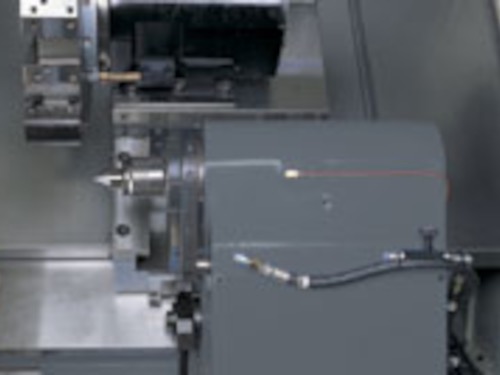

PROGRAMMABLE TAILSTOCK
- The widely spaced tailstock slideways and heavy duty construction asure maximum rigidity. The center sleeve can be controlled by foot switch or programs.

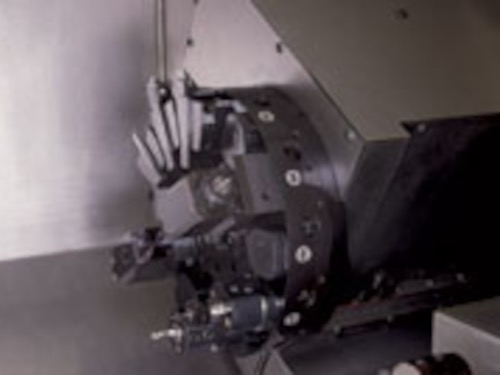

TOOL PRESETTER
- TheThe automatic tool setter is designed to minimize cutting tests. It permits for measuring the tool length and tool diameter. The tool adjustment arm is powered and programmable controlled.

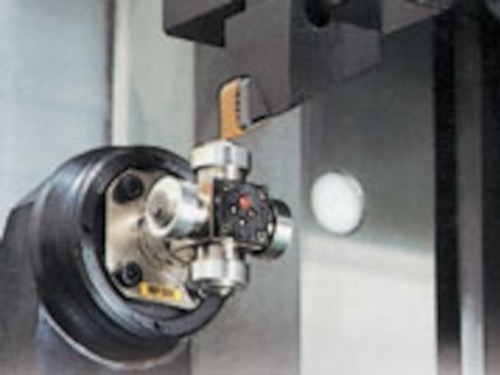

POWERE TURRET
-
The power turret features bi-directional tool change. Tool change time between adjacent tools is only 0.2 seconds. The turret loading capacity is 12 tools. The live tool head can be fitted with 6 tools.
RIGID, PRECISE SPINDLE
- The spindle is precisin-machined from Chrome-molybdenum alloy steel, hardened and dynamically balanced to assure lifetime accuracy. The spindle is supported by class P4 angular contact ball bearings, featuring outstanding axial and radial loading capabilities. Maximum stability of spindle is enhanced especially when performing heavy cutting.

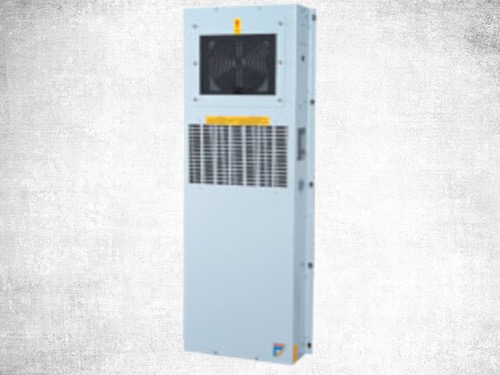

HEAT EXCHANGER FOR ELECTRICAL CABINET
- The high efficiency heat exchanger allows for constant temperature in the electrical cabinet. It also ensures the performance dependability of electronic components.
HYDRAULIC POWER UNIT
- The hydraulic power unit provides power for 3-jaw chuck, hydraulic turret and hydraulic tailstock. The hydraulic power unit consists of high quality components, assuring extremely stable motions, low noise and long service life.
Specifications
| Item | Unit | JCL-4232/5232 |
JCL-5250/6050 |
| Max. swing over bed |
mm | 510 |
510 |
| Max. turning diameter |
mm | Ø320 |
Ø320 |
| Max. turning length |
mm | 320 | 500 |
| Max. bar capacity |
mm | Ø42 / Ø50 |
Ø50 / Ø60 |
| Spindle bore diameter |
mm | Ø50 / Ø70 |
Ø70 / Ø75 |
| Spindle nose |
|
A2-5 / A2-5 |
A2-5 / A2-6 |
| Spindle speed range |
rpm |
45 ~ 3500 |
45 ~ 3500 |
| Spindle motor |
kw | Standard:7.5 , Option:15 |
Standard:7.5 , Option:15 |
| Number of tool stations |
|
10 | 10 |
| Max. stroke X / Z axis |
mm | 171 / 360 |
171 / 550 |
| Rapid traverse X / Z axis |
m/min |
16 /20 |
16 /20 |
| Turret indexing time |
sec | 0.3 |
0.3 |
| Machine design |
deg | 30° |
30° |
| Slide way type |
|
Linear guide way |
Linear guide way |
| Quill taper |
|
MT4 |
MT4 |
| Tailstock traverse |
mm |
100 | 100 |
| Spindle hydraulic chuck |
8” |
8” | |
| Turning tool diameter |
mm |
□20 |
□20 |
| Boring tool diameter |
mm |
Ø32 |
Ø32 |
| Spindle bearing diameter |
mm | Ø100 / Ø110 |
Ø100 / Ø110 |
| X / Z axis ball screw |
mm | Ø 32 |
Ø 32 |
| Diameter X / Z servo motor | kw | Standard:1.2 , Option:1.6 | Standard:1.2 , Option:1.6 |
| Hydraulic motor | kw | 1.5 | 1.5 |
| Lubrication system motor |
w | 3.5 | 3.5 |
| Power requirement |
kva | 20 | 20 |
| Coolant tank capacity |
L | 120 | 120 |
| Machine dimensions (LxWxH) |
mm | 2165x1555x1890 |
2780x1625x1950 |
| Weight |
kg | 3100 |
3500 |
Accessories
Accessories for JCL-4232, JCL-5232, JCL-6032, JCL-4250, JCL-6050
Standard:
- 8" 3-jaw chuck
- 10 position hydraulic turret
- Lighting device
- Coolant device
- Tailstock
- Tools & tool box
- Foot switch
- Inner tool holder 5 pcs
- Inner tool holder sleeve 8, 10, 12, 16, 20, 25mm
- Leveling pad
- Wedge block
- Heat exchanger
- Operation manual
- NC controller operation manual
- NC maintenance manual
Optional:
- Chip conveyor
- Chip cart
- Collet chuck (DIN 6343)
- Parts catcher
- Parts conveyor
- Transformer
- Hydraulic servo turret
- Voltage stabilizer
- Multiple bar feeder
Acessories for JCL-4226M, JCL-5226M, JCL-6026M, JCL-4245M, JCL-5245M, JCL-6045M
Standard:
- 8" 3-jaw chuck
- 12 position power turret (VDI-30)
- Lighting device
- Coolant device
- Spindle C-axis function
- Tailstock
- Tools & tool box
- Foot switch
- Leveling pad
- Heat exchanger
- Operation manual
- NC controller operation manual
- NC maintenance manual
Optional:
- Chip conveyor
- Chip cart
- Collet chuck (DIN 6343)
- Parts catcher
- Parts conveyor
- Transformer
- Voltage stabilizer
- Multiple bar feeder
