Description

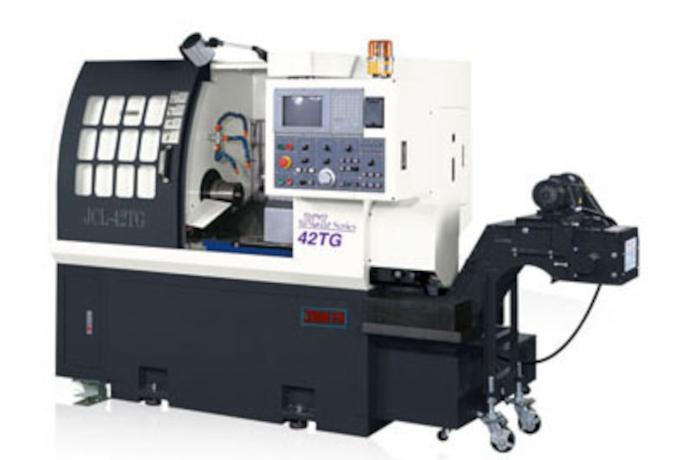

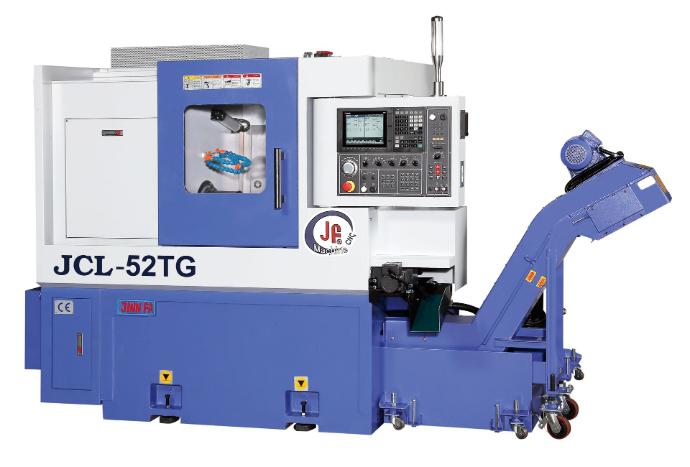

Jinn Fa's groundbreaking innovation takes machining to the next level. The JCL-TG/TGM series fixed head CNC lathe boasts up to 5 axes and dual-channel control, cutting cycle times by up to 50% for identical components.
Elevate your manufacturing prowess and gain a competitive edge with Jinn Fa's JCL-TG/TGM series. Get ready to redefine efficiency and excellence in the world of CNC machining.
Our fixed head CNC lathe with features below:
- Precision Machining: Equipped with a drilling slide, enabling simultaneous O.D. and I.D. machining.
- Turret Options: Choose between an 8-position hydraulic turret or a 12-position power turret.
- Versatile Spindle: The spindle accommodates a 6" 3-jaw chuck or collet chuck, ensuring flexibility in your machining operations.

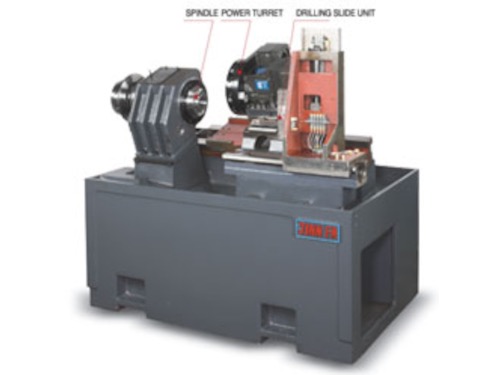

- Streamlined Design: With a 20° slant bed structure, chip disposal becomes seamless, while workpiece access is made easy.

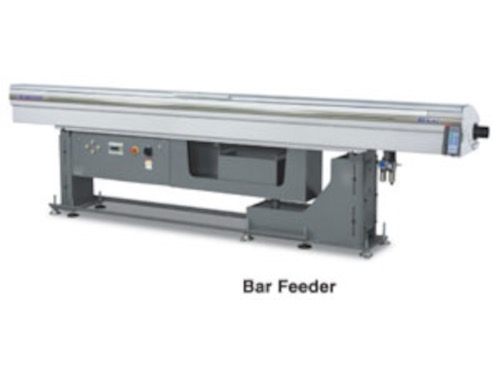

- Enhanced Accessory: The optional bar feeder, depicted in the image, further optimizes your machining setup.
Feature

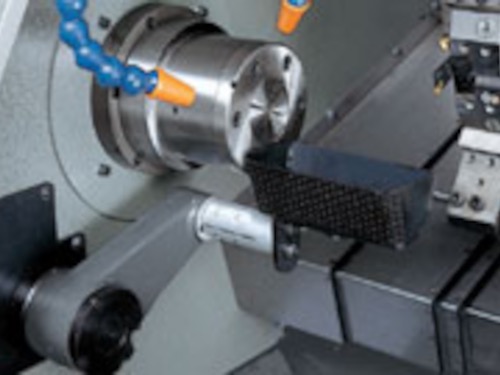

PARTS CATCHER

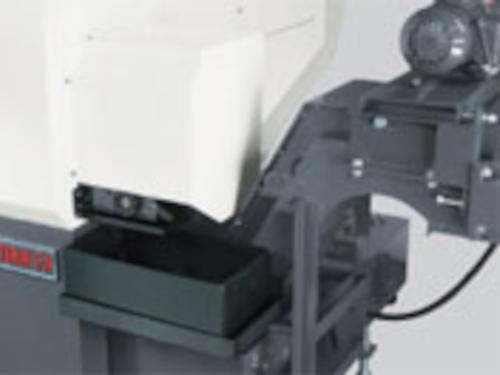

- After machining is completed, parts are moved out of the machine by a conveyor.
TOOLING SYSTEM
- Upon request, a parts catcher is available, It provides convenient and efficient parts collection.

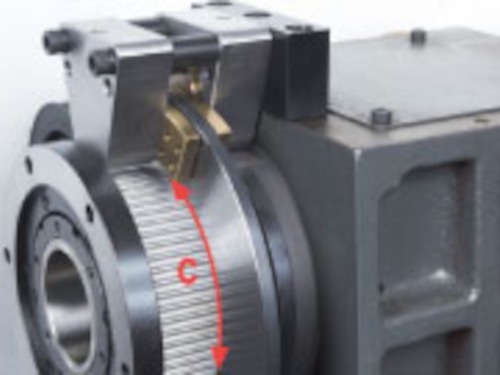

C-AXIS

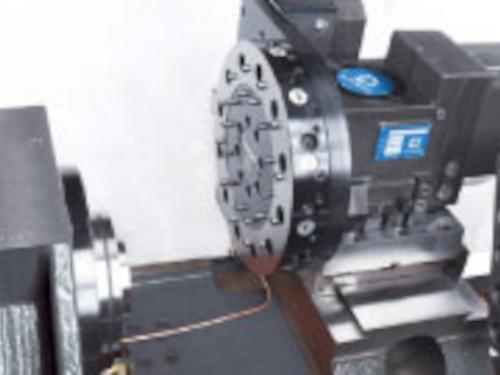

POWER TURRET
The power turret features bi-directional tool change. Tool change time between adjacent tools is only 0.2 seconds. The turret loading capacity is 12 tools. The live tool head can be fitted with 6 tools.
JCL-42TGM/JCL-52TGM, JCL-42TNM/JCL-52TNM
Suited for:
JCL-42TG / JCL-52TG, JCL-42TGM / JCL-52TGM

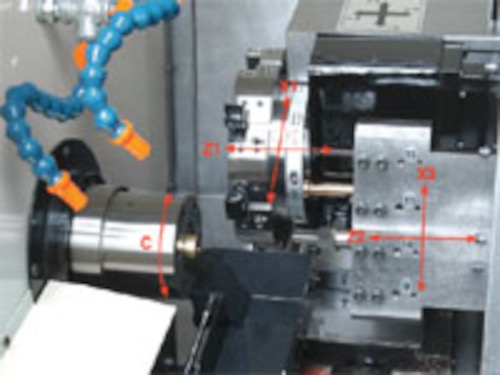

DRILLING SLIDE
The drilling slide can be mounted with 4 ~ 5 tools which enables the machine to perform O.D. and I.D. machining at one time thereby upgrading efficiency. Upgrades operational working time by 1/3 to 1/2.
Specifications
| Item | Unit | JCL-42TG/52TG | JCL-42TGM/52TGM |
| Max. swing over bed |
mm | Ø440 | Ø440 |
| Max. turning diameter | mm | Ø200 | Ø140 |
| Max. turning length | mm | 195 / 180 | 155 / 140 |
| Max. part catch length | mm | 100 | 100 |
| Max. bar capacity | mm | Ø42 / Ø50 | Ø42 / Ø50 |
| Spindle bore diameter | mm | Ø55.5 / Ø70 | Ø55.5 / Ø70 |
| Spindle nose | A2-5 | A2-5 | |
| Spindle speed range | rpm | 45 ~ 4000 | 45 ~ 4000 |
| Spindle motor | kw | 7.5 | 7.5 |
| Number of tool stations $1 | 8 | 12 | |
| Number of tool stations $2 | 5 | 5 | |
| Max. stroke X1 | mm | 125 | 130 |
| Max. stroke Z1 | mm | 205/190 | 165/150 |
| Max. stroke X2 | mm | 240 | 240 |
| Max. stroke Z2 | mm | 290 | 290 |
| Rapid traverse X1 | m / min | 12 (16) | 12 (16) |
| Rapid traverse Z1 | m / min | 12 (16) | 12 (16) |
| Rapid traverse X2 | m / min | 12 (16) | 12 (16) |
| Rapid traverse Z2 | m / min | 12 (16) | 12 (16) |
| Turret indexing time | sec | 0.3 | 0.3 |
| Machine design | deg | 20° | 20° |
| Slide way type | Square guide way | Square guide way | |
| Main-spindle hydraulic chuck | inch | 6” | 6” |
| Turning tool diameter | mm | □20 | □16 |
| Boring tool diameter | mm | Ø25 | VDI 20 |
| Driven tool motor power / 30min | kw | - | 1.5 |
| Hydraulic motor | kw | 0.75 | 0.75 |
| Lubrication motor | w | 3.5 | 3.5 |
| Power requirement | kva | 15 | 21 |
| Coolant tank capacity | L | 100L (85%) | 100L (85%) |
| Machine dimensions (LxWxH) | mm | 2255x1800x1800 | 2255x1800x1800 |
| Weight | kg | 2400 | 2480 |
